* For this item you must specify on your order in PayPal's "Instructions To Merchant" or in an email to [email protected] the length you wish to purchase.
We have also acquired about 500 pieces of 1/2" round fiberglass cut in lengths of 3 & 3/4". They are priced to sell at $2.40 each, + shipping.

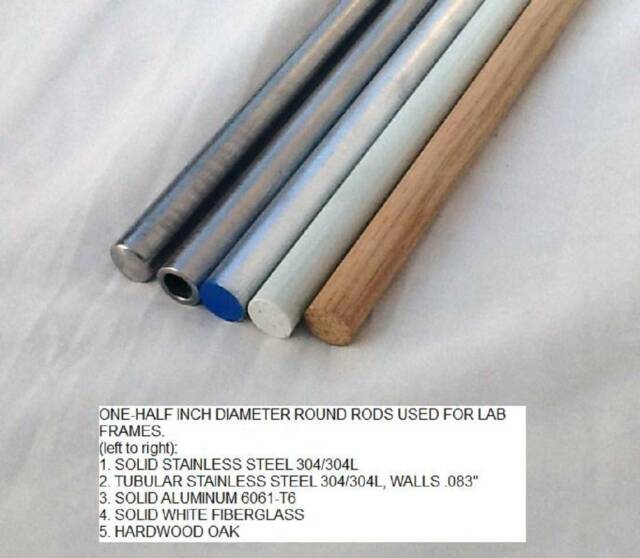

STAINLESS STEEL SOLID ROD
Rods are all 1/2-inch diameter round solid 304 stainless steel with ends cut, deburred and ground smooth.
* For this item you must specify on your order in PayPal's "Instructions To Merchant" or in an email to [email protected] the length you wish to purchase.
STAINLESS STEEL TUBULAR RODS
Rods are 1/2-inch diameter round tubular 304 stainless steel with 0.083" wall thickness and ends cut, deburred and ground smooth.
* For this item you must specify on your order in PayPal's "Instructions To Merchant" or in an email to [email protected] the length you wish to purchase.
ROTOCON CONNECTORS
Connects rods and anchors (feet) using die-cast zinc alloy and die-cast aluminum alloy products.
LEXAN POLYCARBONATE

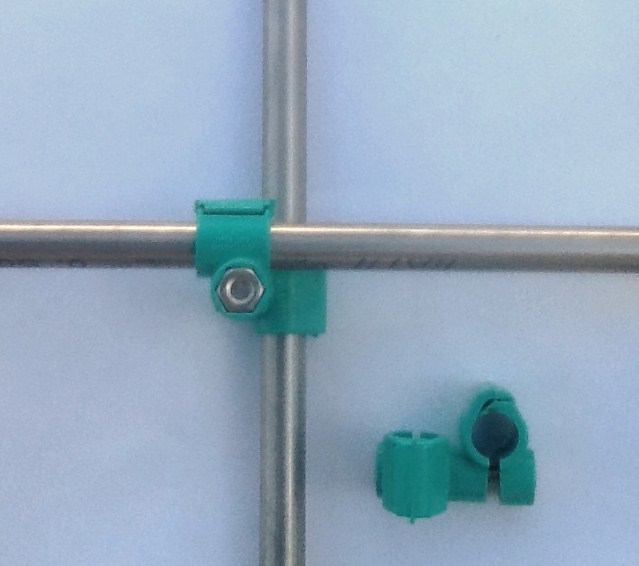

Developed by General Electric, tough Lexan polycarbonate is electrically non-conductive, will not distort at temperatures below 275 degrees F and has a self extinguishing rating for flamability. Toothed faces of paired units mesh to form rigid joints at any 10-degree increment. These clamps feature the "Snap-On" design which allows attachment to 1/2-inch rods or tubes already in place without disassembly of the structure. Their all-around grip never burrs, scores or distorts rods. They come with nickel plated steel 1/4--20 x 1 1/2" slotted filister head screws and 1/4--20 nuts, sufficient for each application. They can be assembled or disassembled easily with a flat blade screwdriver or even a small coin. Each set consists of two clamps (4 pieces) plus a nut and bolt.
WARNING: We have a limited quantity of this product. Lexan is tough, but not as strong as the steel nut and screw that attaches the connectors together. Over-tightening can cause the attaching lip around the rod to break, resulting in failure of the clamp assembly. Be careful when tightening. A snug fit avoiding slippage is sufficient.

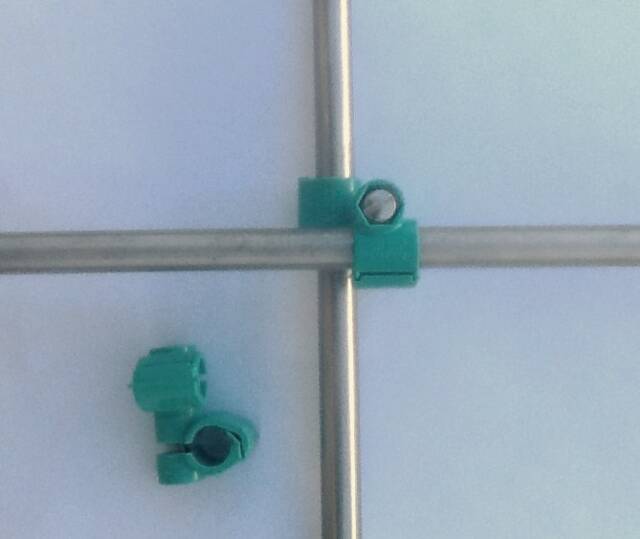

Lexan Polycarbonate Connectors, LSRTS-1/2
ROTOCON ANCHORS (FEET)
Securely anchors or attaches frames to platforms or walls using Lexan polycarbonate, die-cast zinc alloy and die-cast aluminum alloy products.
LEXAN POLYCARBONATE
Developed by General Electric, tough Lexan polycarbonate is electrically non-conductive, will not distort at temperatures below 275 degrees F and has a self extinguishing rating for flamability. Toothed faces of paired units mesh to form rigid joints at any 10-degree increment. This LM-90 Mounting Base is used to anchor an assembly or structure to its base platform or support. The anchor is provided with two holes for No.10 screws and two 7/64" holes on each of two angle faces. It employs an LSRT-1/2 to attach the rod to the mounting base. It comes with nickel plated steel 1/4--20 x 1 1/2" slotted filister head screws and 1/4--20 nuts, sufficient for the intended application. They can be assembled or disassembled easily with a flat blade screwdriver or even a small coin. Each set consists of two mounting bases plus a nut and bolt. WARNING: Lexan is tough, but not as strong as the steel nut & screw that attaches the connectors together. Over-tightening can cause the attaching lip around the rod to break, resulting in failure of the clamp assembly. A snug fit avoiding slippage is sufficient.

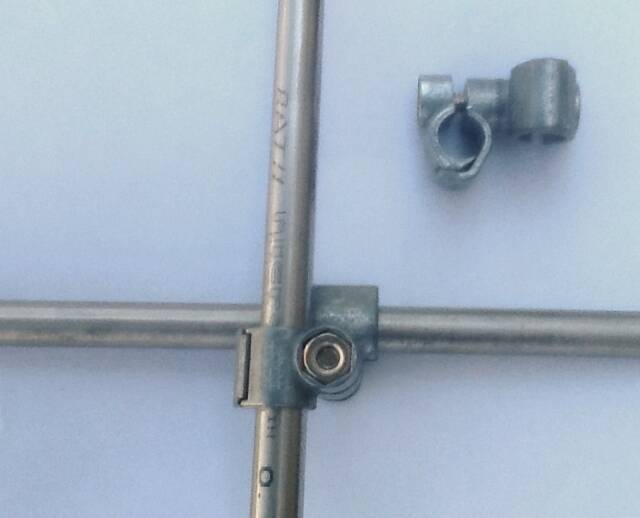

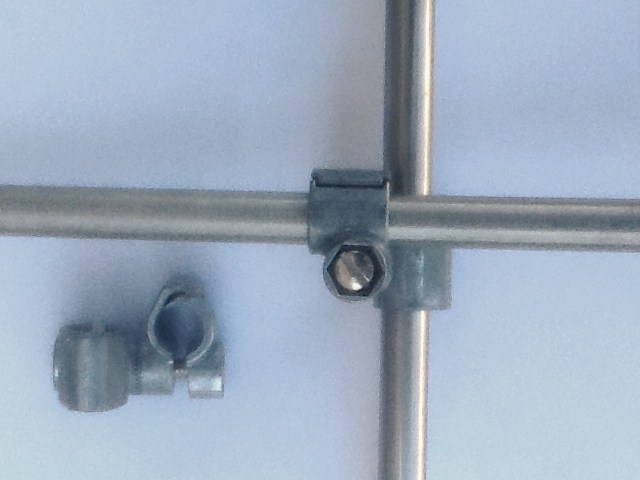

Rotocon small series, RT-1/2, strongly connects 1/2" OD round rods to other 1/2" rods or to Rotocon anchors (feet), also in the small series. Toothed faces of paired units mesh to form rigid joints at any 10-degree increment of adjustment. These clamps feature the "Slip-On" design which allows attachment to rods or tubes at either end of the rod. Their all-around grip never burrs, scores or distorts rods. They come with nickel plated steel 1/4--20 x 1 1/2" slotted filister head screws and 1/4--20 nuts, sufficient for the intended application. They can be assembled or disassembled easily with a flat blade screwdriver or even a small coin. Each set consists of two clamps (2 pieces) plus a nut and bolt.

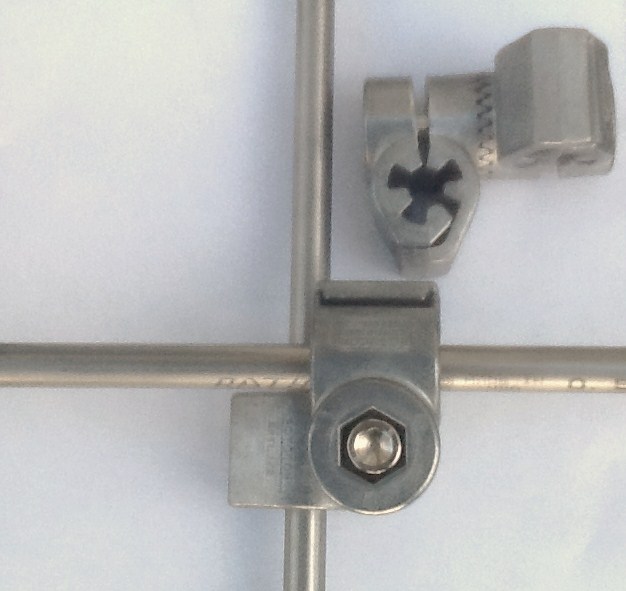

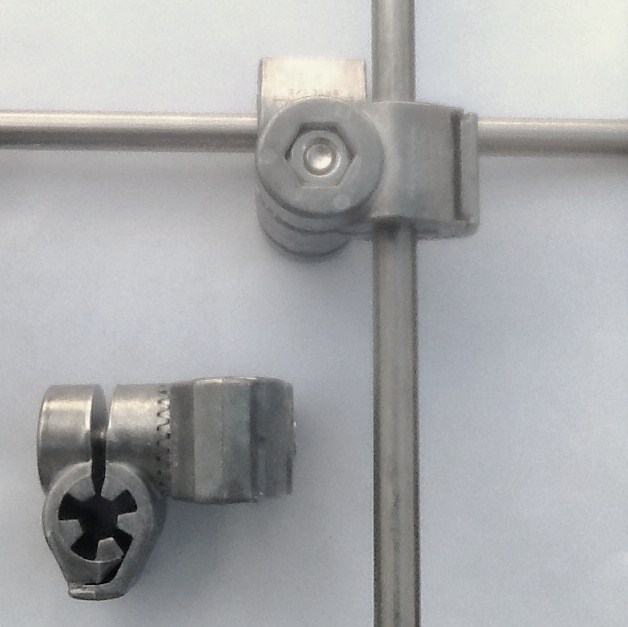

Rotocon large series, SRTL-1/2, provides heavy duty connections of 1/2" OD round rods to other 1/2" rods or to Rotocon anchors (feet), also in the large series. Toothed faces of paired units mesh to form rigid joints at any 15-degree increment of adjustment. These clamps feature the "Snap-On" design which allows attachment to rods or tubes already in place with no disassembly of the fixture. Their all-around grip never burrs, scores or distorts rods. They come with nickel plated 3/8--16 x 2 3/4" socket head cap screws and 3/8--16 hex nuts, sufficient for the intended application. They can be assembled or disassembled easily with a 5/16" hex key or Allen wrench. Each set consists of two clamps (4 pieces) plus a nut and bolt.
Die-Cast Rotocon Large Connectors, SRTL-1/2 @ $17.25/Set
(+ Shipping)
DIE-CAST ZINC ALLOY
This M-90 Mounting Base securely attaches to a connector and anchors it to the base platform. Toothed faces of paired units mesh to form rigid joints at any 10-degree increment. The mounting base is designed with two threaded holes for No. 10 screws and two non-threaded 7/32" holes on each of two angle faces for attachment to the frame support platform or wall.They come with nickel plated steel 1/4--20 x 1 1/2" slotted filister head screws and 1/4--20 nuts, sufficient for the intended application. They can be assembled or disassembled easily with a flat blade screwdriver or even a small coin. Each set consists of two mounting bases plus a nut and bolt.
Die-Cast Zinc Mounting Bases, M-90 @ $8.15/Set
(+ Shipping)
DIE-CAST ALUMINUM ALLOY
This is the heavy duty Rotocon FL in the large series which connects to the SRTL-1/2 heavy duty connector to anchor the frame to the base platform or wall. Toothed faces of paired large series units mesh to form rigid joints at any 15-degree increment. This flange or anchor is designed with 3 screw holes to attach the frame to the base platform. The set comes with a 3/8--16 x 2 3/4" socket head cap screw and 3/8--16 hex nut in nickel plated steel and in sufficient numbers for the intended application. Each set consists of two bases (each with 2 parts) plus 1 nut and 1 bolt.
Die-Cast Aluminum Base Flange, FL @ $18.00 per Set
(+ Shipping)
Click on photograph to enlarge image
Click on photograph to enlarge image
Click on photograph to enlarge image
Click photo to enlarge

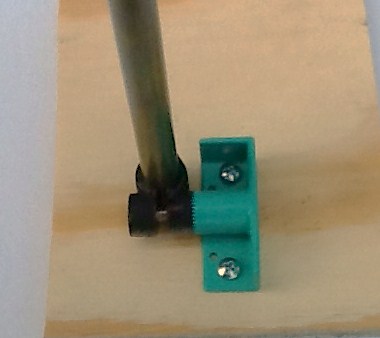

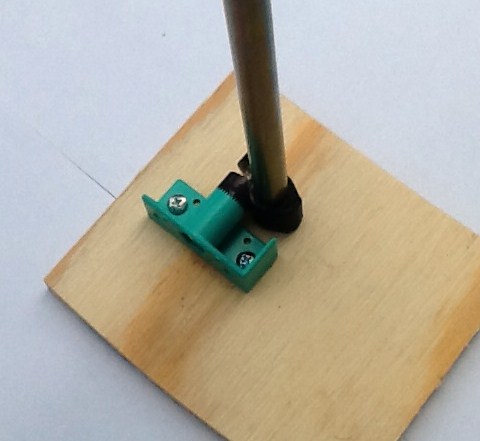

LM-90 Mounting Base shown anchoring a rod in union with a blackened LSRT-1/2.

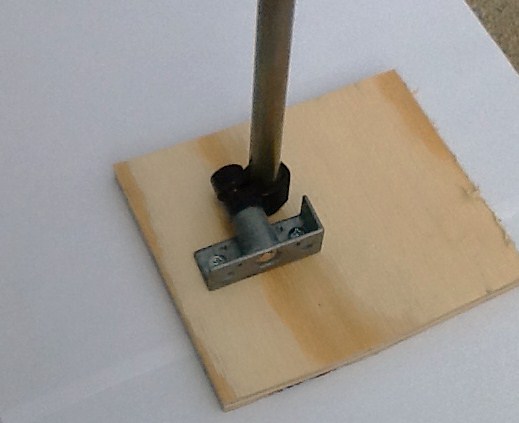

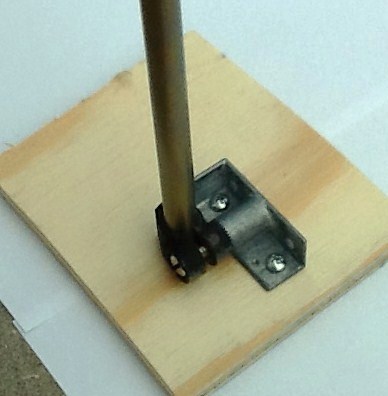

M-90 Mounting Base and SRT-1/2 (Blackened) shown anchoring a rod in a vertical position.

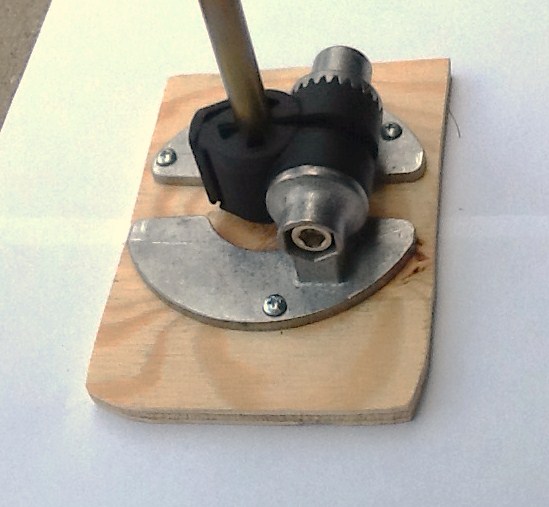

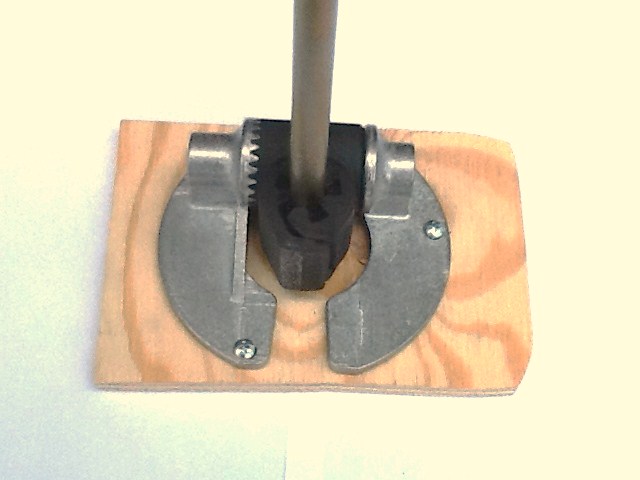

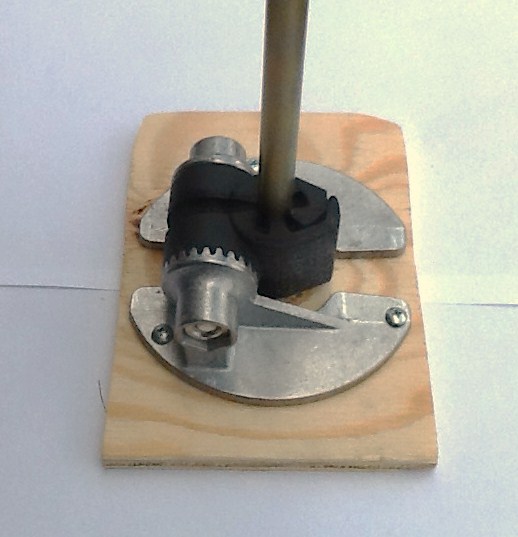

FL Base Flange and SRTL-1/2 (Blackened) combo attachment anchoring a rod in a vertical position. This is our Heavy-Duty Anchor.
* For this item you must specify on your order in PayPal's "Instructions To Merchant" or in an email to [email protected] the length you wish to purchase.
ALUMINUM TUBING
We also have a special lot of about 1000 pieces of 6061-T6 Aluminum Tubing, 1/2" OD with wall thickness of approximately 0.065" and 3 & 3/4" in length, selling at $4.00 each, plus shipping.
Site Navigation
Lab Frames with base support rods:
Lab Frames without base support rods:
Wall-Mounted Lab Frames
For explanation of shipping charges, see section in "Contact Us".
ANCHOR SCREWS
Anchor Screws, Phillips Pan Head SMS 18-8 SS #10x1",
30/pkg @ $4.60/pkg plus shipping
Anchor Screws, Phillips Pan Head SMS 18-8 SS #10x1.5",
