Not just PLASTIC but one of the strongest plastics, NYLON 666.

View shopping cart

Herbie Clips

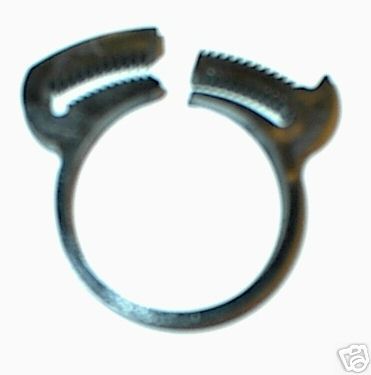

Hose Clamps, Nylon 666, Double-Locking.  We have the Best Prices and our nylon hose clamps have incredible strength and staying power due to the material they are made from and the double rows of interlocking teeth. They will not vibrate loose, can not rust or corrode, install faster than metal worm-drive clamps, are cost-effective in time savings, easy to install even with the hose already in place. There are no sharp edges or protruding bands to cut hands and arms and they are re-usable as long as the teeth are not damaged. The effective temperature range is -40 to +300 degrees F, they are not affected by fuels, oils, water or salt solutions and resistant to most chemicals (except acids).

These clamps are quality. They are not cheap plastic clips that will get brittle and disintegrate in a matter of weeks or months. Rotocon owner, Chuck Holloway, replaced OEM hose clamps on his radiator, heater and fuel injector hoses with the nylon hose clamps on his new 1988 Ford Mustang. They were still there when it was sold in 2003, some 15 years later. There were no failures and the radiator hose clamps were reused when new hoses  were installed. If you are concerned about the strength of Nylon 666, Michael Day Enterprises, Wadsworth, OH has published documentation of testing by ASTM Test Method D638 showing Nylon 666 tensil strength at the breaking point to be 26500 pounds per square inch, certainly strong enough for most applications short of hydraulic pressure hoses, which are not recommended.  Try them for your next application. You'll be glad you did.

To install, simply position the clamp around the hose and engage the tongue into the jaw with finger pressure. Using pliers, close clamp until the desired pressure is applied to the hose. To remove, use pliers to grip the entire end of the jaw section and gently twist sideways to disengage the teeth from the jaw.

These clamps come in black or royal blue. Some sizes we have in both colors, others, either black or blue. (If you have your heart set on a color, email us with the size you want and the color. We'll send a reply as to whether we have it or not).

To measure the outside diameter of your hose, take the open end of the hose and place a ruler or measuring tape across the end and note the inches and fractions across the center of the opening including both walls of the hose. This is an OD measurement. If you need ID or inside diameter measurement follow the same procedure except you do not include the walls of the hose (only the opening).

COMMON USAGE WITH SIZES

Vinyl Tubing OD: 5/16" use Size 22-AA;  3/8" use Size 24-BB;  7/16" use Size 25-C;  1/2" use Size 26-D;  5/8" use Size 28-F;  7/8" use Size 31-J;  1" use Size 33-L;  1 1/4" use Size 35-N.

Neoprene Hose:  1/8" use Size 22-AA;  3/16" use Size 23-B;  9/32" use Size 26-D;  3/8" use Size 28-F.

Braided Utility Hose ID:  1/4" use Size 27-E;  3/8" use Size 28-F;  1/2 " use Size 31-J;  5/8" use Size 32-K;  3/4" use Size 34-M;  1" use Size 37-Q;  1 1/4" use Size 40-T;  1 1/2" use Size 43-W.

Fuel Line Hose ID:  1/4" use Size 25-C;  5/16" use Size 26-D;  3/8" use Size 28-F.

Heater Hose ID:  1/2" use Size 30-H;  5/8" use Size 31-J;  3/4" use Size 33-L.

Radiator Hose ID:  1 1/4" use Size 38-R;  1 1/2" use Size 40-T;  1 3/4" use Size 43-W.

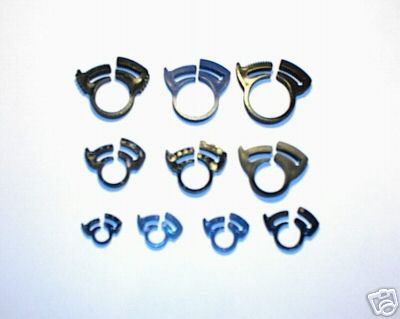

Small Sizes Variety Pack, 10/pkg.  Each clamp is a different size. Package contains one clamp of each size from 21-A through 30-H.  The OD hose sizes for these clamps is 0.22" to 0.87" or 5.6 to 20.6 mm. This translates to  a little less than 1/4 inch to about 7/8 inch. Approx. Shipping Wt 3 oz.

55-SVP, 10/pkg @ $1.75

Buy this

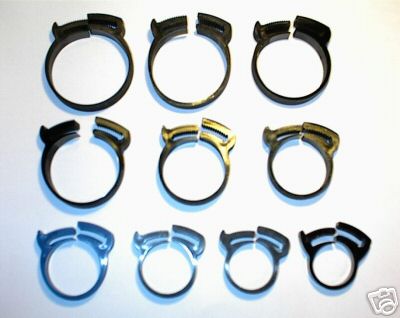

Medium Sizes Variety Pack, 10/pkg.  Each clamp is a different size. Package contains one clamp of each size from 31-J through 40-T.  The OD hose sizes for these clamps is 0.80" to 1.91" or 20.3 to 46.2 mm.  This translates to a little less than 13/16 inch to a little more than 1 7/8 inches. Approx Shipping Wt 4 oz.

56-MVP, 10/pkg @ $2.65

Buy this

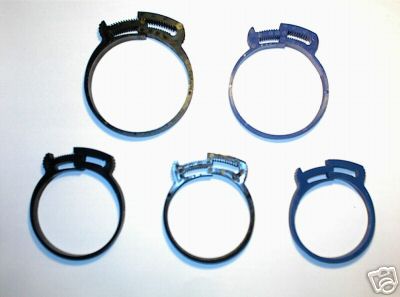

Large Sizes Variety Pack, 5/pkg.  Each clamp is a different size. Package contains one clamp of each size from 41-U through 45-6065. The OD hose sizes for these clamps is 1.85" to 2.58" or 46.0 to 64.8 mm.  This translates to a little less than 1 7/8 inches to a little more than 2 9/16 inches. Approx Shipping Wt 5 oz.

57-LVP, 5/pkg @ $1.75

Buy this

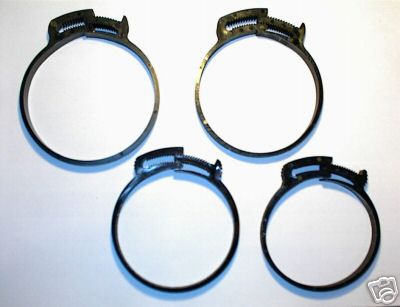

Extra Large Sizes Variety Pack, 4/pkg.  Each clamp is a different size.  Package contains one clamp of each size from 46-6570 through 49-8085.  The OD hose sizes for these clamps is 2.54" to 3.34"or 65.0 to 85.1 mm. This translates to a little less than 2 9/16 inches to about 3 5/16 inches. Approx Shipping Wt 5 oz.

58-XLVP, 4/pkg @ $1.65

Buy this

Herbie Clips

Herbie Clips Nylon Hose Clamps, Individual Sizes

Shipping Charges will be invoiced separately (See "Contact Us" for explanation)

Hose Clamps, Size 21-A, 0.22 to 0.26" or 5.6 to

6.6 mm. (For Hoses OD 1/4" to 5/16"), 10/pkg @$1.40

Approx Shipping Wt 3 oz.

Hose Clamps, Size 21-A, 100/pkg @$13.00

Approx Shipping Wt 6 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 22-AA, 0.26 to 0.31" or 6.6 to

7.9 mm. (For Hoses OD 1/4" to 5/16"), 10/pkg @$1.40

Approx Shipping Wt 3 oz.

Hose Clamps, Size 22-AA, 100/pkg @$13.25

Approx Shipping Wt 7 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 23-B, 0.31 to 0.36" or 7.9 to

9.1 mm. (For Hoses OD 5/16" to 3/8"), 10/pkg @$1.45

Approx Shipping Wt 3 oz.

Hose Clamps, Size 23-B, 100/pkg @$13.50

Approx Shipping Wt 7 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 24-BB, 0.36 to 0.41" or 9.1 to

10.4 mm. (For Hoses OD 3/8" to 7/16"), 10/pkg @$1.50

Approx Shipping Wt 3 oz.

Hose Clamps, Size 24-BB, 100/pkg @$14.00

Approx Shipping Wt 8 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 25-C,  0.40 to 0.47" or 10.2 to

11.9 mm. (For Hoses OD  7/16" to 1/2"), 10/pkg @$1.60

Approx Shipping Wt 3 oz.

Hose Clamps, Size 25-C, 100/pkg @$15.00

Approx Shipping Wt 10 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 26-D, 0.47 to 0.54" or 11.9 to

13.7 mm. (For Hoses OD 1/2" to 9/16"), 10/pkg @$1.70

Approx Shipping Wt 3 oz.

Hose Clamps, Size 26-D, 100/pkg @$16.00

Approx Shipping Wt 13 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 27-E, 0.52 to 0.59" or 13.2 to

15.0 mm. (For Hoses OD 9/16" to 5/8"), 10/pkg @$1.90

Approx Shipping Wt 3 oz.

Hose Clamps, Size 27-E, 100/pkg @$18.00

Approx Shipping Wt 15 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 28-F, 0.59 to 0.67" or 15.0 to

17.0 mm. (For Hoses OD 5/8" to 11/16"), 10/pkg @$2.00

Approx Shipping Wt 3 oz.

Hose Clamps, Size 28-F, 100/pkg @$19.00

Approx Shipping Wt 16 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 29-G, 0.67 to 0.75" or 17.0 to 19.1

mm. (For Hoses OD 11/16" to 13/16"), 10/pkg @$2.10

Approx Shipping Wt 3 oz.

Hose Clamps, Size 29G, 100/pkg @$19.50

Approx Shipping Wt 16 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 30-H, 0.71 to 0.81" or 18.0 to 20.6

mm. (For Hoses OD 3/4" to 7/8"), 10/pkg @$2.30

Approx Shipping Wt 3 oz.

Hose Clamps, Size 30-H, 100/pkg @$20.50

Approx Shipping Wt 1 lb 2 oz (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 31-J, 0.80 to 0.91" or 20.3 to 23.1

mm. (For Hoses OD 13/16" to 15/16"), 10/pkg @$2.35

Approx Shipping Wt 3 oz.

Hose Clamps, Size 31-J, 100/pkg @$21.00

Approx Shipping Wt 1 lb 3 oz (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 32-K, 0.87 to 0.98" or 22.1 to 24.9

mm. (For Hoses OD 7/8" to 1"), 10/pkg @$2.35

Approx Shipping Wt 3 oz.

Hose Clamps, Size 32-K, 100/pkg @$21.00

Approx Shipping Wt 1 lb 4 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 33-L, 0.97 to 1.09" or 24.6 to 27.7

mm. (For Hoses OD 1" to 1&1/8"), 10/pkg @$2.40

Approx Shipping Wt 3 oz.

Hose Clamps, Size 33-L, 100/pkg @$21.50

Approx Shipping Wt 1 lb 5 oz. (FREE U.S. SHIPPING)

________________________________________

Hose Clamps, Size 34-M, 1.04 to 1.16" or 26.4 to 29.5

mm. (For Hoses OD 1&1/16" to 1&3/16"), 10/pkg @$2.45

Approx Shipping Wt 4 oz.

Hose Clamps, Size 34-M, 100/pkg @$22.00

Approx Shipping Wt 1 lb 7 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 35-N, 1.13 to 1.27" or 28.7 to 32.3

mm. (For Hoses OD 1&3/16" to 1&5/16"), 10/pkg @$2.45

Approx Shipping Wt 4 oz.

Hose Clamps, Size 35-N, 100/pkg @$22.50

Approx Shipping Wt 1 lb 10 oz (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 36-P, 1. 26 to 1.37" or 32.0 to 34.8

mm. (For Hoses OD 1&1/4" to 1&3/8"), 10/pkg @$2.50

Approx Shipping Wt 4 oz.

Hose Clamps, Size 36-P, 100/pkg @$24.50

Approx Shipping Wt 1 lb 12 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 37-Q, 1.35 to 1.49" or 34.3 to 37.8

mm. (For Hoses OD 1&3/8" to 1&9/16"), 10/pkg @$2.85

Approx Shipping Wt 4 oz.

Hose Clamps, Size 37-Q, 100/pkg @$27.50

Approx Shipping Wt 1 lb 14 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 38-R, 1.50 to 1.61" or 38.1 to 40.9

mm. (For Hoses OD 1&1/2" to 1&11/16"), 10/pkg @$2.90

Approx Shipping Wt 5 oz.

Hose Clamps, Size 38-R, 100/pkg @$28.00

Approx Shipping Wt 1 lb 15 oz (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 39-S, 1.58 to 1.74" or 40.1 to 44.2

mm. (For Hoses OD 1&5/8" to 1&3/4"), 10/pkg @$2.95

Approx Shipping Wt 6 oz.

Hose Clamps, Size 39-S, 100/pkg @$28.50

Approx Shipping Wt 2 lb 0 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 40-T, 1.70 to 1.82" or 43.2 to 46.2

mm. (For Hoses OD 1&3/4" to 1&15/16"), 10/pkg @$3.05

Approx Shipping Wt 6 oz.

Hose Clamps, Size 40-T, 100/pkg @$29.50

Approx Shipping Wt 2 lb 2 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 41-U, 1.81 to 1.99" or 46.0 to 50.5

mm. (For Hoses OD 1&7/8" to 2"), 10/pkg @$3.15

Approx Shipping Wt 6 oz.

Hose Clamps, Size 41-U, 100/pkg @$30.50

Approx Shipping Wt 2 lb 4 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 42-V, 1.91 to 2.12" or 48.5 to 53.8

mm. (For Hoses OD 2" to 2&1/8"), 10/pkg @$3.25

Approx Shipping Wt 6 oz.

Hose Clamps, Size 42-V, 100/pkg @$31.50

Approx Shipping Wt 2 lb 6 oz (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 43-W, 2.09 to 2.22" or 53.1 to 56.4

mm. (For Hoses OD 2&1/16" to 2&1/4"), 10/pkg @$3.40

Approx Shipping Wt 6 oz.

Hose Clamps, Size 43-W, 100/pkg @$33.00

Approx Shipping Wt 2 lb 8 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 44-X, 2.17 to 2.38" or 55.1 to 60.5

mm. (For Hoses OD 2&3/16" to 2&3/8"), 10/pkg @$3.60

Approx Shipping Wt 6 oz.

Hose Clamps, Size 44-X, 100/pkg @$35.00

Approx Shipping Wt 2 lb 8 oz (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps,  Size 45-6065, 2.32 to 2.55" or 58.9 to 64.8

mm. (For Hoses OD 2&5/16" to 2&5/8"), 5/pkg @$1.85

Approx Shipping Wt  5 oz.

Hose Clamps, Size 45-6065, 100/pkg @$36.00

Approx Shipping Wt 3 lb 8 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 46-6570, 2.56 to 2.72" or 65.0 to 69.1

mm. (For Hoses OD 2&9/16" to 2&13/16"), 5/pkg @$1.95

Approx Shipping Wt 5 oz.

Hose Clamps, Size 46-6570, 100/pkg @$37.50

Approx Shipping Wt 3 lb 12 oz (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 47-7075, 2.76 to 2.97" or 70.1 to 75.4

mm. (For Hoses OD 2&11/16" to 3"), 5/pkg @$2.00

Approx Shipping Wt 5 oz.

Hose Clamps, Size 47-7075, 100/pkg @$39.00

Approx Shipping Wt 4 lb 0 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 48-7580, 2.94 to 3.17" or 74.7 to 80.5

mm. (For Hoses OD 2&7/8" to 3&3/16"), 5/pkg @$2.05

Approx Shipping Wt 5 oz.

Hose Clamps, Size 48-7580, 100/pkg @$40.00

Approx Shipping Wt 4 lb 4 oz. (REDUCED U.S. SHIPPING)

________________________________________

Hose Clamps, Size 49-8085, 3.14 to 3.35" or 79.8 to 85.1

mm. (For Hoses OD 3" to 3&3/8"), 5/pkg @$2.10

Approx Shipping Wt 5 oz.

Hose Clamps, Size 49-8085, 100/pkg @$40.50

Approx Shipping Wt 4 lb 8 oz. (REDUCED U.S. SHIPPING)

________________________________________

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Shipping Charges, if applicable, will be invoiced separately (Explained in "Contact Us")

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

Buy this

12/26/09 PRICE REDUCTION ON ALL HERBIE CLIPS

WHOLESALE PRICING!

FREE OR REDUCED U.S. SHIPPING IN PACKS OF 100

NO MINIMUMS TO BUY!

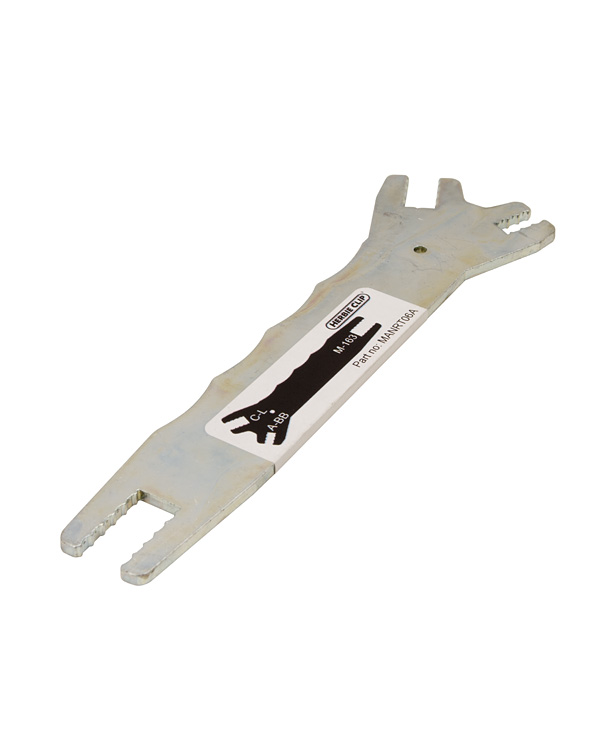

Herbie Clip Removal Tool. This tool fits all sizes of Herbie Clips (Nylon Hose Clamps) and is very easy to use. Just place the removal tool end over the back of the bottom female jaw and twist sideways. Diagrams, directions and sizes for each of the 3 gripper heads are printed on the tools for quick reference.

It is true that Herbie Clips can be removed with a simple pair of pliers but you will be less likely to damage the Herbie Clip interlocking teeth using the removal tool. The Herbie Clips can be used over and over again as long as the interlocking teeth are not damaged. The removal tool is made of corrosion-resistant steel. The shipping weight is approximately 7 ounces. When ordering multiple tools the incremental weight is 4 ounces.

Herbie Clip Removal Tool,

HCRT, 1/pkg @ $10.35

Buy this

NEW ITEM!
