CUSTOM-BUILD YOUR CHROMATOGRAPHY AND DISTILLATION STANDS HERE
ATTENTION: WHEN YOUR ORDER TOTALS $100 OR MORE IT SHIPS BY GROUND IN
THE U.S. (EXCEPT ALASKA & HAWAII) FOR FREE!

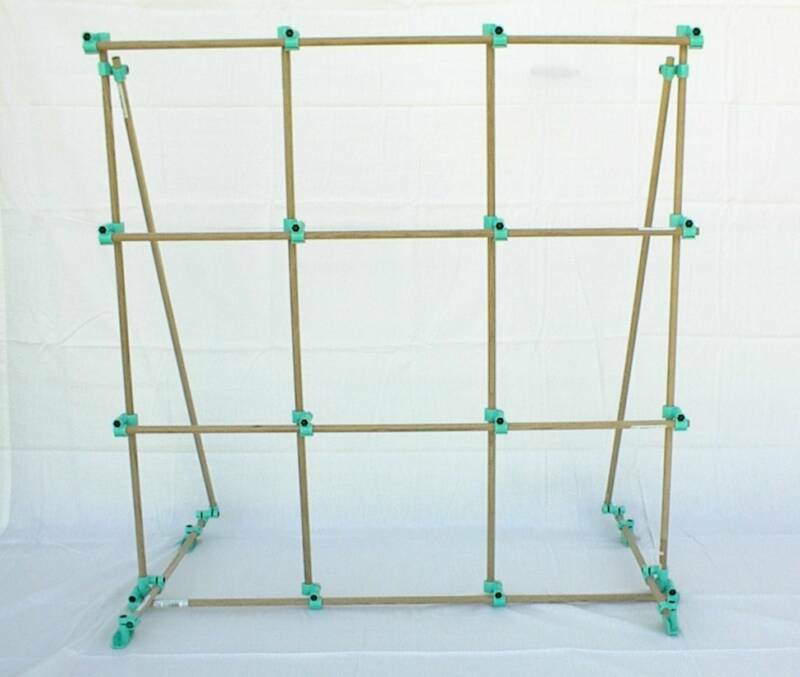

LIGHT-DUTY OAK LAB FRAME, 3 Ft by 3 Ft and 18 Inches Deep
Made of 1/2 inch round HARDWOOD OAK rods connected and anchored by our tough Rotocon Lexan Assembly Clamps. Sturdy construction with support at 12 inch intervals will accomodate light loads without problems providing a very strong lattice support. There are four anchoring bases which can be attached to your table top, plywood base or floor to prevent tipping over. These clamps can connect at 10 degree intervals and will allow much versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 10 each 1/2 inch round oak rods (dowels) 36 inches in length, 2 each 1/2 inch round oak rods 18 inches in length, 24 sets LSRT-1/2 Lexan Snap-On Assembly Clamps and 2 sets LM-90 Lexan Mounting Base. Shipping will be added to the invoice after order is placed. Assembly required. Approximate shipping weight 5.5 lbs.
LIGHT-DUTY LAB FRAME, 3' X 3' @ $79.85
For a stronger frame with tighter connections you can order the frame with nickel plated steel nuts and screws instead of the Lexan nuts and screws. Approx 5.7 lbs
LIGHT-DUTY LAB FRAME, OAK & LEXAN W/ STEEL NUTS/SCREWS, 3' X 3' @ $82.45

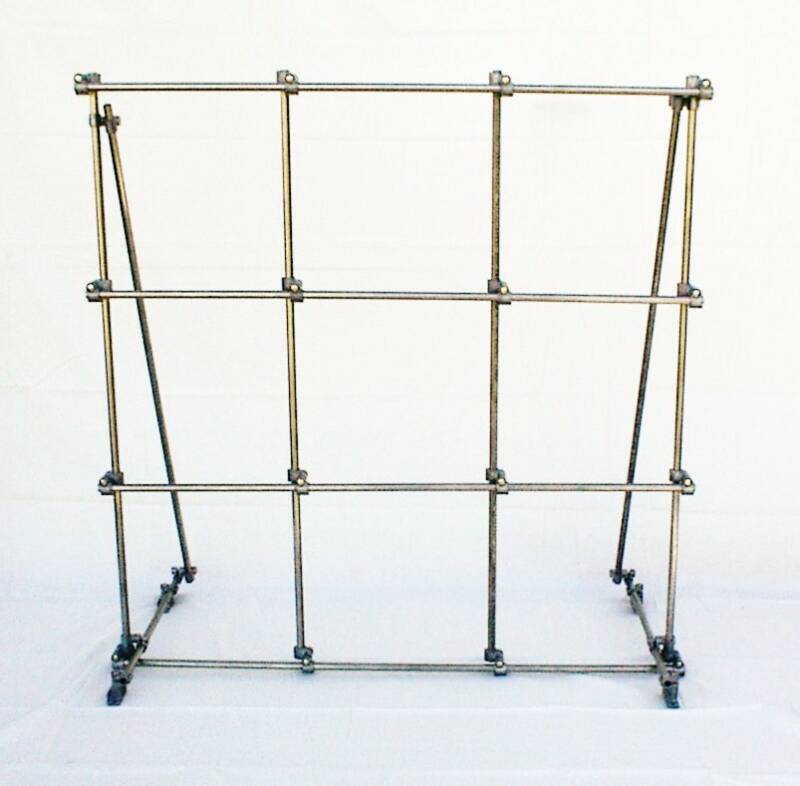

M-D STAINLESS STEEL LAB FRAME, 3 by 3 Ft, 18 In. Deep
Made of 1/2 inch round STAINLESS STEEL tubing connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals earns a rating of MEDIUM-DUTY. There are four anchoring bases which can be attached to your table top, plywood or other base to prevent tipping over. These assembly clamps can connect at 10 degree intervals and will allow versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 10 each 1/2 inch round (304) stainless steel tubing 36 inches in length, 2 each 1/2 inch round (304) stainless steel tubing 18 inches in length, 24 sets Rotocon SRT-1/2 Snap-On Assembly Clamps and 2 sets of Rotocon M-90 Mounting Base. Assembly required. Shipping charge will be added to the invoice after order is placed. Approximate shipping weight 16.6 lbs.

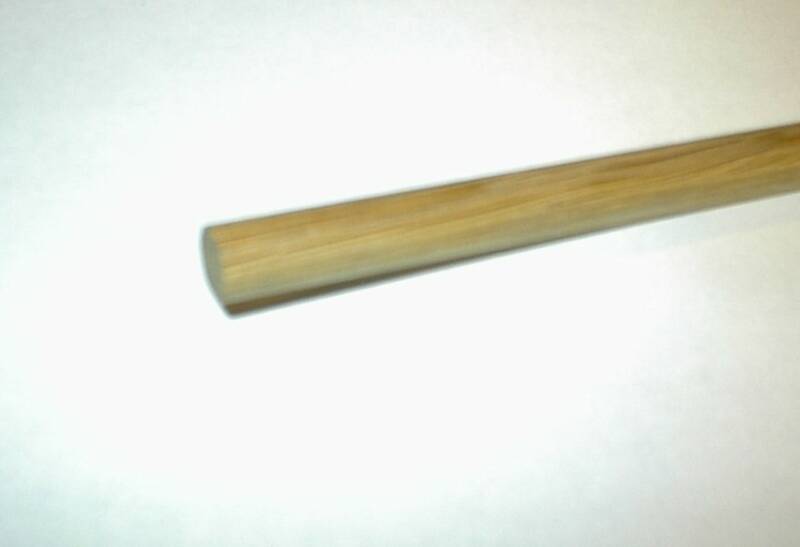

Made of hardwood oak uniformly lathe-rounded to 1/2 inch (12.7mm). Comes in 18 inch or 36 inch lengths. Ends are cleanly cut and ready for assembly. With support connectors at one foot intervals this is a remarkably strong rod. Shipping charge will be added to invoice after order is placed.
Rotocon Small Series, Non-Metallic Lexan, 1/2 Inch. Polycarbonate Lexan is electrically non-conductive, will not distort at temperatures below 275 degrees F and has a self extinguishing rating for flamability. Toothed faces of paired units mesh to form rigid joints at any 10 degree increment of angle. Nuts and bolts are also made of Lexan.
Shipping charges will be added to invoice after order is placed.
Rotocon LSRT-1/2, Lexan Set. These clamps feature the "Snap-On" design which allows attachment to 1/2 inch rods or tubes already in place without disassembly of the structure. They can be assembled/disassembled easily with a flat-blade screwdriver or even a coin. Each set consists of two clamps (4 pieces) plus a nut and bolt, all Lexan. Approx Shipping Wt 2 oz.

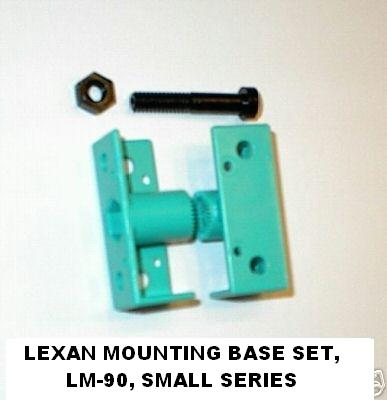

The mounting base is used to anchor an assembly or structure to its base using the LSRT-1/2 . There are two 5/32" and two 7/32" holes on each of the two angle faces for anchor screws. Anchor screws are not included. Each set consists of two mounting bases with one nut and bolt, all Lexan. Approx Shipping Wt 3 oz.

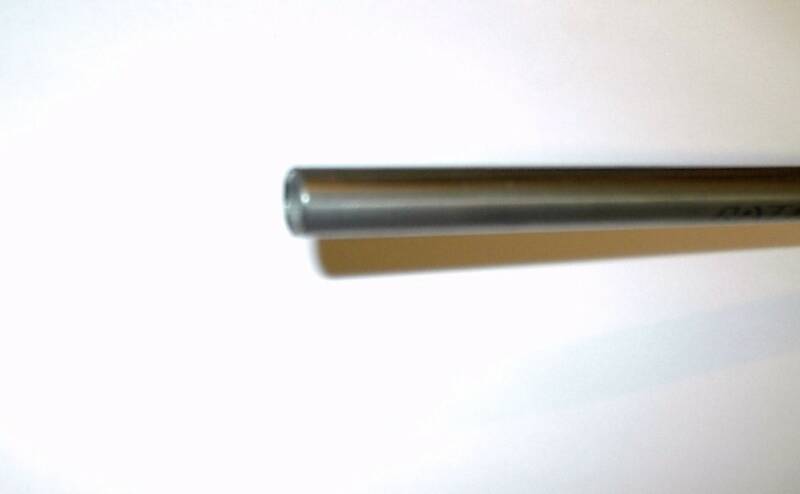

Made of grade 304 stainless steel tubing uniformly rounded to 1/2 inch (12.7mm) diameter. Available in lengths of 1.5, 2.0, 2.5, 3.0, 4.0 and 5.0 feet. Ends are cleanly cut, smoothed and deburred. Ready for assembly. Shipping charge will be added to the invoice after order is placed.
Fits on 1/2 inch OD rods, tubes or pipes. Designed for 10 degree increments of angle adjustment. Set includes 2 clamps (4 pieces) with a nickel plated steel 1/4-20 x 1 1/2" slotted filister head screw and a nickel plated 1/4-20 hex nut. Approx Shipping Wt 5 oz.
ROTOCON M-90 MOUNTING BASE SET. Made of die-cast zinc alloy allowing strength, economy and excellent resistance to corrosion. Used to anchor or mount structures in conjunction with other clamps in the "Rotocon Small Series" attached to rods, tubes or pipes. Forms rigid joints at 10 degree increments of angle adjustment. Mounting Bases are provided with two threaded holes for No. 10 screws and two 7/32" non-threaded holes on each of two angle faces to facilitate anchoring. Set consists of 2 bases with a nickel plated steel 1/4-20 x 1 1/2" slotted fillister head screw and a nickel plated 1/4-20 hex nut. Approx Shipping Wt 8 oz.

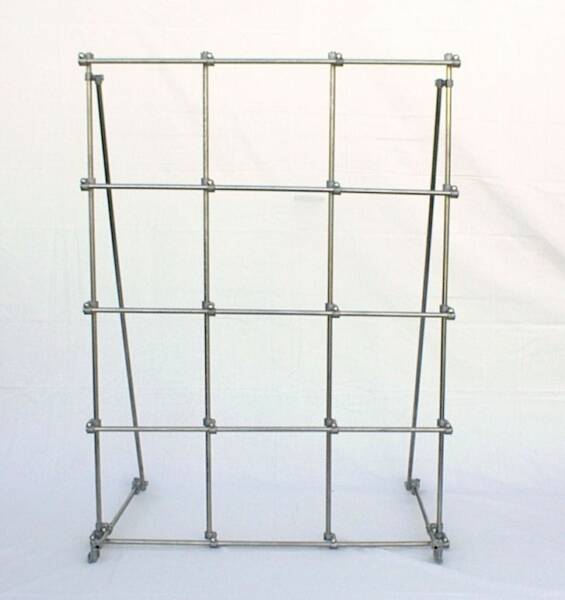

M-D STAINLESS STEEL LAB FRAME, 3 by 4 Ft, 24 In. Deep
Made of 1/2 inch round STAINLESS STEEL tubing connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals earns a rating of MEDIUM DUTY. There are four anchoring bases which can be attached to your table top, plywood or other base to prevent tipping over. These assembly clamps can connect at 10 degree intervals and will allow versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 6 each 1/2 inch round (304) stainless steel tubing 48 inches in length, 5 each 1/2 inch round (304) stainless steel tubing 36 inches in length, 2 each 1/2 inch round (304) stainless steel tubing 24 inches in length, 28 sets Rotocon Snap-On Assembly Clamps and 2 sets of Rotocon Mounting Bases. Assembly required. Shipping will be added to the invoice after order is placed. Approx. 19.8 lbs.

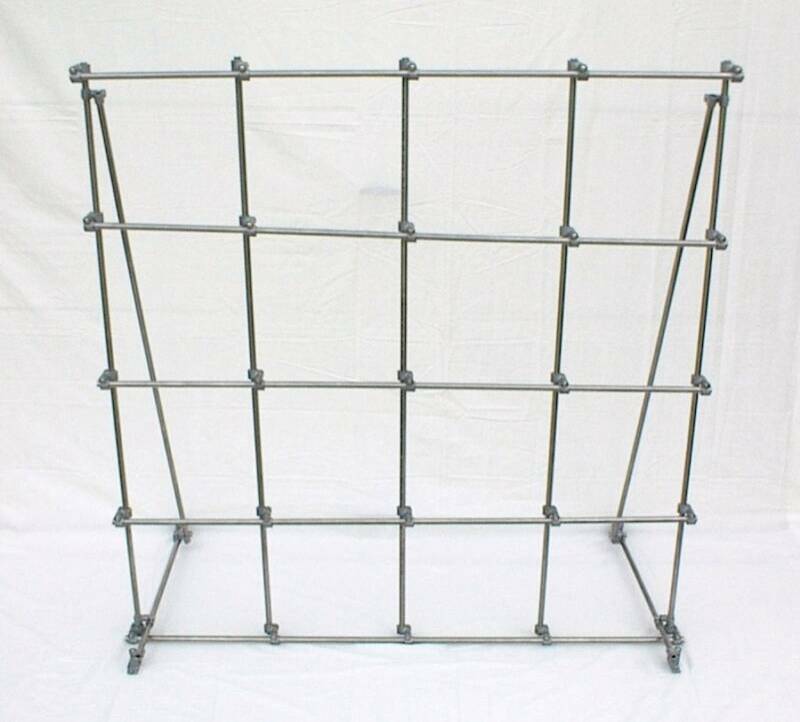

M-D STAINLESS STEEL LAB FRAME, 4 by 4 Ft, 24 In. Deep
Made of 1/2 inch round STAINLESS STEEL tubing connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals earns a rating of MEDIUM DUTY. There are four anchoring bases which can be attached to your table top, plywood or other base to prevent tipping over. These assembly clamps can connect at 10 degree intervals and will allow versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 12 each 1/2 inch round (304) stainless steel tubing 48 inches in length, 2 each 1/2 inch round (304) stainless steel tubing 24 inches in length, 33 sets Rotocon SRT-1/2 Snap-On Assembly Clamps and 2 sets of Rotocon M-90 Mounting Base. Assembly required. Shipping charge will be added to the invoice after order is placed. Approximate shipping weight 23.2 lbs.
Our lab frames have been arbitrarily divided into 3 groups according to the relative strengths of the components. The groups are Light-Duty, Medium-Duty and Heavy-Duty. They are listed and shown on this web page in order. Extra parts can be ordered in the same areas.
The Light-Duty Lab Frames are composed of wooden oak or fiberglass rods connected by Rotocon Lexan products.
The Medium-Duty Lab Frames are composed of fiberglass rods or stainless steel tubing connected by Rotocon die-cast zinc alloy products.
The Heavy-Duty Lab Frames consist of stronger stainless steel rods connected by our larger Rotocon die-cast aluminum alloy products.

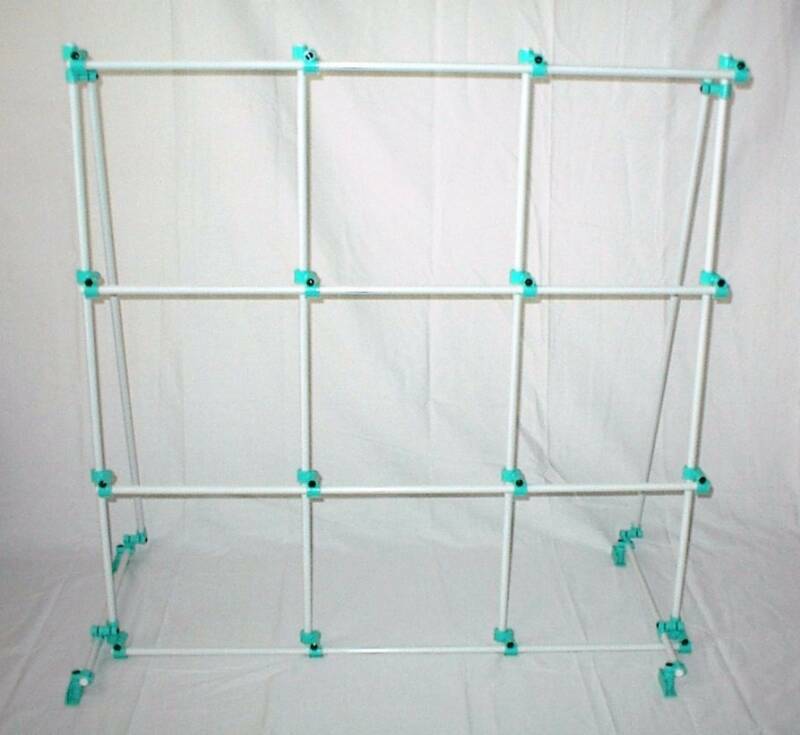

LIGHT-DUTY FIBERGLASS LAB FRAME, 3 Ft by 3 Ft,18 In. Deep
Made of 1/2 inch round FIBERGLASS rods connected and anchored by our tough Rotocon Lexan Assembly Clamps. Sturdy construction with support at 12 inch intervals will accomodate light loads without problems providing a very strong lattice support. There are four anchoring bases which can be attached to your table top, plywood base or floor to prevent tipping over. These clamps can connect at 10 degree intervals and will allow much versatility in design and construction. Detailed suggested assembly instructions for frames as pictured above are included. The kit contents are as follows: 10 each 1/2 inch round fiberglass rods 36 inches in length, 2 each 1/2 inch round fiberglass rods 18 inches in length, 24 sets LSRT-1/2 Lexan Snap-On Assembly Clamps and 2 sets LM-90 Lexan Mounting Base. Shipping will be added to the invoice after order is placed. Assembly required. Approximate shipping weight 8.1 lbs.
FIBERGLASS LAB FRAME, 3' X 3' @ $136.50
For a stronger frame with tighter connections you can order this frame with nickel-plated steel nuts and screws instead of the Lexan nuts and screws. Approx. 8.3 lbs.

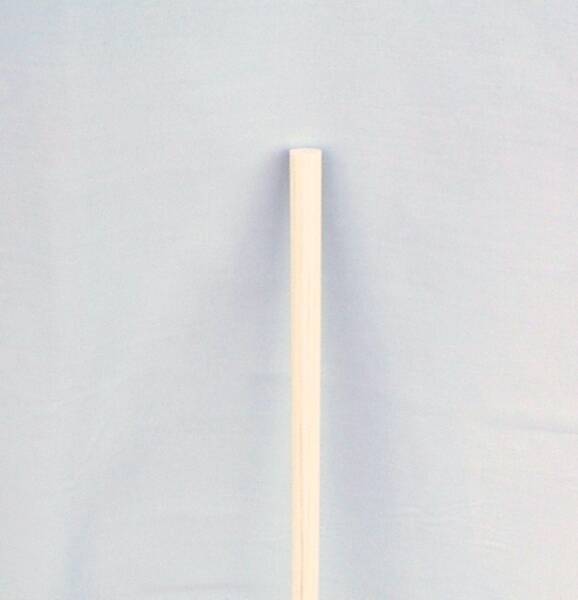

Made of 1/2 inch round white fiberglass. Comes in below-listed lengths only. Ends are cleanly cut and ready for assembly. With support connectors at one foot intervals this is a remarkably strong rod. Shipping charge will be added to invoice after order is placed.

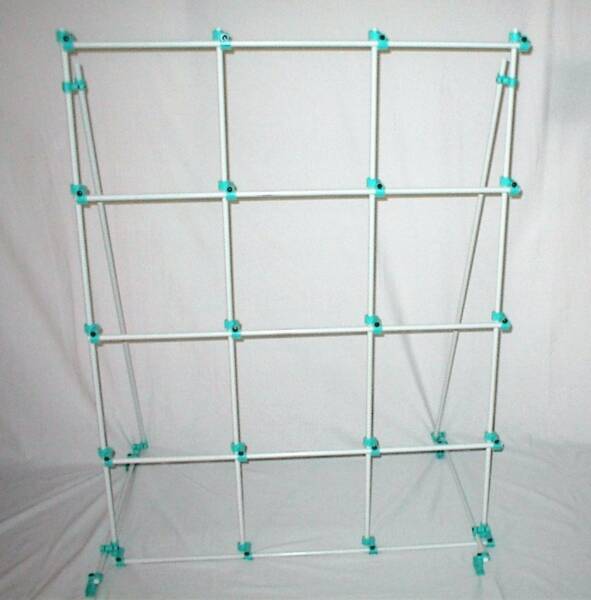

LIGHT-DUTY FIBERGLASS LAB FRAME, 3 by 4 Ft, 24 In. Deep
Same description as above except the kit contents are as follows: 6 each 1/2 inch round white fiberglass rods 48 inches in length, 5 each 1/2 inch round white fiberglass rods 36 inches in length, 2 each 1/2 inch round white fiberglass rods 24 inches in length, 28 sets Rotocon Lexan LSRT-1/2 Snap-On Assembly Clamps and 2 sets of Rotocon Lexan LM-90 Mounting Bases. Assembly required. Shipping charge will be added to the invoice after order is placed. Approximate shipping weight 10.1 lbs.
FIBERGLASS LAB FRAME, 3' X 4' @ $169.50
For a stronger frame with tighter connections you can order this frame with nickel-plated steel nuts and screws instead of the Lexan nuts and screws. Approx. 10.3 lbs.

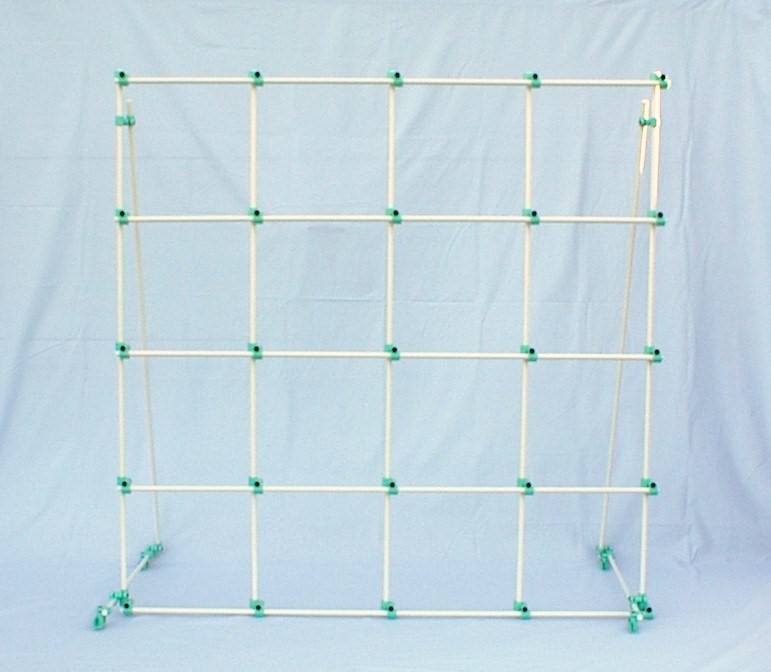

LIGHT-DUTY FIBERGLASS LAB FRAME, 4 by 4 Ft, 24 In. Deep
Same description as above except the kit contents are as follows: 12 each 1/2 inch round white fiberglass rods 48 inches in length, 2 each 1/2 inch round white fiberglass rods 24 inches in length, 33 sets Rotocon Lexan Snap-On Assembly Clamps and 2 sets of Rotocon Lexan Mounting Bases. Assembly required. Shipping charge will be added to the invoice after order is placed. Approximate shipping weight 11.8 lbs.
FIBERGLASS LAB FRAME, 4' X 4' @$202.00
For a stronger frame with tighter connections you can order this frame with nickel-plated steel nuts and screws instead of the Lexan nuts and screws. Approx. 12.0 lbs.
MED. DUTY FIBERGLASS LAB FRAME, 3 by 3 Ft, 18 In. Deep
Made of 1/2 inch round FIBERGLASS rods connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals will accomodate medium to heavy loads without problems and provide a very strong lattice support. There are four anchoring bases which can be attached to your table top, plywood base or floor to prevent tipping over. These clamps can connect at 10 degree intervals and will allow much versatility in design and construction. Detailed suggested assembly instructions for frames as pictured above are included. The kit contents are as follows: 10 each 1/2 inch round fiberglass rods 36 inches in length, 2 each 1/2 inch round fiberglass rods 18 inches in length, 24 sets SRT-1/2 Snap-On Assembly Clamps and 2 sets M-90 Mounting Base. Shipping will be added to the invoice after order is placed. Assembly required. Approximate shipping weight 11.5 lbs.
Made of 1/2 inch round FIBERGLASS rods connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals will accomodate medium to heavy loads. There are four anchoring bases which can be attached to your table top, plywood or other base to prevent tipping over. These assembly clamps can connect at 10 degree intervals and will allow versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 6 each 1/2 inch round white fiberglass rods 48 inches in length, 5 each 1/2 inch round white fiberglass rods 36 inches in length, 2 each 1/2 inch round white fiberglass rods 24 inches in length, 28 sets Rotocon Snap-On Assembly Clamps and 2 sets of Rotocon Mounting Bases. Assembly required. Shipping charge, if applicable, will be added to the invoice after order is placed. Approx. 13.8 lbs.
M-D STAINLESS STEEL LAB FRAME, 4 by 5 Ft, 2.5 Ft Deep
Made of 1/2 inch round STAINLESS STEEL tubing connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals earns a rating of MEDIUM DUTY. There are four anchoring bases which can be attached to your table top, plywood or other base to prevent tipping over. These assembly clamps can connect at 10 degree intervals and will allow versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 7 each 1/2 inch round (304) stainless steel tubing 60 inches in length, 6 each 1/2 inch round (304) stainless steel tubing 48 inches in length, 2 each 1/2 inch round (304) stainless steel tubing 30 inches in length, 38 sets Rotocon SRT-1/2 Snap-On Assembly Clamps and 2 sets of Rotocon M-90 Mounting Base. Assembly required. Shipping charge will be added to the invoice after order is placed.
M-D STAINLESS STEEL LAB FRAME, 5 by 5 Ft, 2.5 Ft Deep
Made of 1/2 inch round STAINLESS STEEL tubing connected and anchored by our die-cast zinc alloy Rotocon Assembly Clamps. Sturdy construction with support at 12 inch intervals earns a rating of MEDIUM DUTY. There are four anchoring bases which can be attached to your table top, plywood or other base to prevent tipping over. These assembly clamps can connect at 10 degree intervals and will allow versatility in design and construction. Detailed suggested assembly instructions for frames as pictured are included. The kit contents are as follows: 14 each 1/2 inch round (304) stainless steel tubing 60 inches in length, 2 each 1/2 inch round (304) stainless steel tubing 30 inches in length, 44 sets Rotocon SRT-1/2 Snap-On Assembly Clamps and 2 sets of Rotocon M-90 Mounting Base. Assembly required. Shipping charge will be added to the invoice after order is placed.
